FirmaSAT Validation REST API

The FirmaSAT Validation REST API provides a REST (REpresentational State Transfer) interface to the FirmaSAT On-line Validator.

Introduction

The FirmaSAT Validation REST API provides an efficient way to validate SAT CFDi XML documents through a simple REST interface. With a single endpoint and a straightforward POST method, this API ensures that your XML data is well-formed and compliant with SAT specifications. Additionally, it verifies the validity of signatures and the TimbreFiscalDigital (TFD) element, if included. Communication is handled entirely in JSON for ease of integration. Users can obtain a free API token to start validating documents and utilize provided code examples in multiple programming languages. The API delivers detailed validation results, helping users quickly identify issues with their documents. With support for multiple document types including Retenciones and Contabilidad, the FirmaSAT Validation REST API is an essential tool for ensuring compliance and accuracy in electronic invoices.

Summary

The FirmaSAT Validation REST API has only one endpoint and accepts just one method (POST). All communication is in JSON. The API does one thing: it validates a SAT CFDi^[note] XML document. The response contains all the information provided at the On-line Validator but in JSON form. There is YAML documentation in OpenAPI format below.

The API validates 3 things:

That the XML data is well-formed and is valid in accordance with the SAT specifications.
That the signature (Sello node) is valid against the X.509 certificate in the Certificado node.
That the TimbreFiscalDigital (TFD) element, if present, is valid using the public key in the PAC's certificate that counter-signed it. You must provide this certificate in your request if you wish to validate the TFD.

^[note] As well as CFDi, it can also validate Retenciones and Contabilidad and Controles Volumetricos documents. See Supported Document Types.

Endpoint URL and Method

The endpoint URL is

https://di-mgt.com.au/cryptosys/api/fsa_validation

Only the POST method is accepted. There are no URL parameters or query parameters. The only header should be "Content-Type: application/json".

Getting an API token

You need an API token to use this service. Get a free api-token here. For the moment, users are limited to 200 requests per calendar month and rate-limiting is enforced. We'll review this limit once we get an idea of demand. If you intend to do bulk requests, please contact us and we'll work something out.

2026-06-26: We've fixed up a problem with sending emails with your API Token. Some email servers including hotmail and gmail would reject our email. That should be fixed now. Thanks to Javier G for pointing out this issue and apologies for the inconvenience.

Request Body

The JSON request format is

{
  "api-token": "<your API token>",
  "xmldata": "<input XML data>",
  "pac-cert": "<optional certificate data for PAC>"
}

Get a free api-token here. Encode the input XML data in JSON-compatible form, and encode the pac-cert as a base64 string (with or without the "-----BEGIN CERTIFICATE" PEM-style encapsulation. There are API client code examples below in Python, JavaScript, GO and C#. Encoding the XML into JSON is important: see Encoding XML into JSON below.

Response Format

{
  "status": "success|partialsuccess|error",
  "validation-result": { "<results in JSON form>" },
  "timestamp": "2026-05-27T03:58:57+00:00",
  "reference": "181106cc9b"
}

The validation-result object contains all the information provided at the FirmaSAT On-line Validator but in JSON form. See the Example below.

Status results

"status":"success" means that all three validations succeeded:

"xml-valid": true,
"signature-valid": true,
"tfd-valid": true

"status":"error" means that nothing succeeded:

{"status":"error","message":"bad-json"}

"status":"partialsuccess" means that the input was valid but at least one of the three validations failed. Check the *-valid fields and the corresponding error messages. For example

"tfd-valid": false,
"tfd-error": "no certificate was provided.",

"xml-valid": false,
"xml-error": "XML structure is NOT valid.",

Encoding XML data into JSON

Be aware you cannot send "raw" XML data in the JSON request. You must serialize (encode) the XML data into a JSON string first. This requires escaping certain characters with a backslash (\). For the rules see Escape JSON String.

All required escaping is automatically carried out in the API client code below. Note the lines

response = requests.post(url, json=payload)  # the 'json' parameter automatically serializes the payload

body: JSON.stringify(payload),  // Note use of Javascript JSON.stringify()

Encoding XML data in JSON requires (at least) escaping all the double-quote (") characters inside the XML Body and changing all newline characters to "\n". For example
```
"xmldata": "<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n ...etc"
```
We strongly recommend you use the built-in functions in your programming language to do this, like JavaScript's JSON.stringify(), Python's json.dumps(), PHP's json_encode(), golang's json.Marshal() or C#'s JsonSerializer.Serialize().

Example

Example CFDi XML document and PAC certificate. Download from Test files.

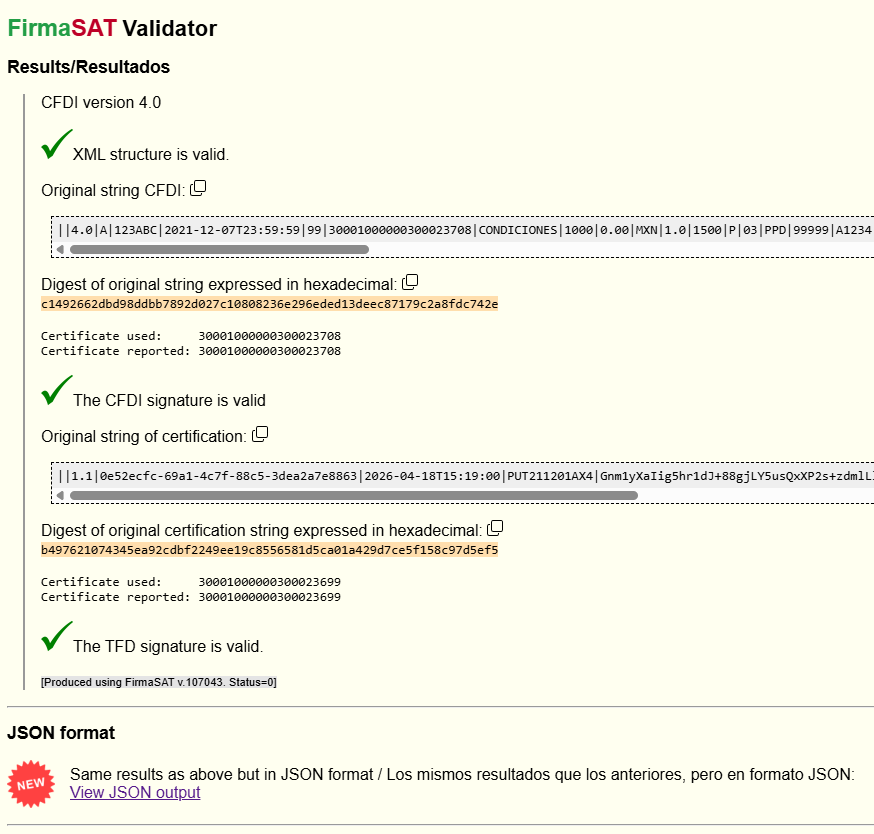

Output from On-line Validator: Image
JSON response: ejemplo-response.json
JSON request: ejemplo-request.json (yes!). Note that
- for the "xmldata" value, you must encode your XML data for JSON inside your request. This looks difficult but is easily automated: see Encoding XML into JSON.
- the "pac-cert" value is just a simple string containing the base64 characters in the PAC certificate "pac-cert":"MIIFgzCCA2ugAwIB...SsvuIBSk="

Suggested API client code

Here are some suggested REST validation client code examples for the FirmaSAT validation service in various languages. There is a "full" client example that passes your XML data, and some minimal code to check your interface is working.

All the "full" examples take input as the filename of the XML document to be validated (xmlFile) and an optional PAC certificate (either as a filename or a base64 string).
Test files required: validation_rest_testfiles.zip.
Note that a large part of the full code examples is spent dealing with the (optional) PAC certificate and the different ways it may be passed to the program (binary certificate file, PEM textual file, base64 string). Don't get distracted by this. Try the simpler minimal examples first as a quick check.

Python: Full API client: validation_rest.py
Quick minimal code: validation_rest_min.py
Javascript: Full API client: validation_rest.js
Quick minimal code: validation_rest_min.js
Go: Full API client: validation_rest.go
Quick minimal code: validation_rest_min.go
C#: Full API client: validation_rest.cs
Quick minimal code: validation_rest_min.cs

The quick tests send an XML string which is well-formed XML but not a valid SAT XML document. This should return a status of "partialsuccess" with an xml-error "XML file is not a supported document". If you get this result, your api-token is valid and your code is working.

Test files

Test files required for the above client code: validation_rest_testfiles.zip (4.9 kB).

Using curl from the command line

You can use curl to send a request. It gets messy with the escaping required, especially on Windows. However, it is a quick way to make a test like the minimal examples above, just to check that your api-token is correct and that the site is working. Here are minimal examples for both Windows and Linux. Click on the links to show the details.

curl -X POST -H "Content-Type: application/json" -d "{\"api-token\": \"YOUR_API_TOKEN_HERE\", \"xmldata\":\"^<?xml version=\\\"1.0\\\"?^>^<Person^>^<Name^>John^</Name^>^</Person^>\"}" https://di-mgt.com.au/cryptosys/api/fsa_validation

curl -X POST -H "Content-Type: application/json" -d "{\"api-token\": \"YOUR_API_TOKEN_HERE\", \"xmldata\":\"<?xml version=\\\"1.0\\\"?><Person><Name>John</Name></Person>\"}" https://di-mgt.com.au/cryptosys/api/fsa_validation; echo

These minimal examples send an XML document that is well-formed but not a valid SAT document. The correct response should be a status of "partialsuccess" with an xml-error "XML file is not a supported document". If you get this, it worked as expected.

Escaping: On the command line any double-quote character (") needs to be escaped with a backslash (\) and then any double-quote characters inside the XML data need double-escaping, and Windows requires escaping the "<" and ">" characters with a "^". It is left as an exercise for the reader to manage this with a real CFDi document :-). But it's good as a quick test.

YAML documentation

Here is OpenAPI YAML documentation.

Disclaimer

This REST API is provided for information purposes only. No warranties. Use at your own risk. See the full Disclaimer here
